Hongtek Filtration Co., Ltd.
We are professional supplier of High Flow Filter Cartridges,High Flow Pleated Filters,PP Melt Blown Filters,Water Filter Cartridges,High Flow Filters,Pleated Filter Cartridges,Carbon Block Filters,Str
Business Type:Manufacturer
Country/Region:China
Ddu Verified
HOT Rank
Description

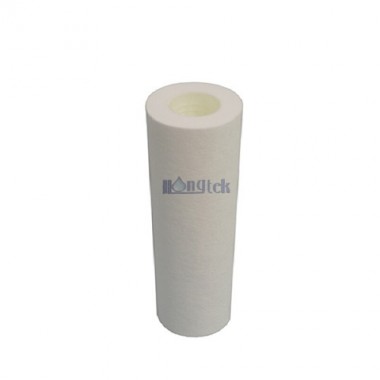

PP melt blown filter cartridges are high dirt holding capacity, low pressure drop, high flow rate, good chemical resistance, no fibre release, longer service life and effectively filtration for suspended particle, sediment and other kinds of impurities. PP melt blown cartridges are economical and classical filter media, widely used in liquid prefiltration industries.
Feature
1. PP filter cartridges are mainly applied to most industry standard housings
2. 100% FDA approved safety polypropylene material have a lot of demanding applications
3. Superior PP melt blown filters are high filtration efficiency, consistent good performance
4. PP cartridges are multi-layered construction, high contaminant holding capacity and longe service life
5. Customized special PP melt blown filter cartridges are accepted to meet specific application requirements
6. Many types of end caps are available by thermally-bonded, such as 222/fin, 222/flat, 226/fin, 226/flat etc.
Applications
1. PCB industry
2. Plating solution
3. Food & Beverage
4. Electronic Industry
5. Petrochemical Process
6. Chemicals and Solvents
7. Pre RO/ID water filtration
8. Industrial waste water treatment
Performance
Operation Data for PP Melt Blown Filter Cartridges
| Maximum Operating Temperature | 60 ℃(140℉) |
| Max. Differential Pressure | 3.0 bar at 27℃ (43 psi at 80℉) |
| 2.0 bar at 60℃(29 psi at 140℉) | |
| 1.0 bar at 60℃(14 psi at 140℉) | |
| Liquid Flow Direction | Outside to inside |
| Recommend Change out Differential Pressure | 2.5 Bar |
| Construction of PP Melt Blown Filter Cartridges | ||
● The cross-section drawn of PP melt blown filter cartridges ● From inner layers to outer layers of PP filters the fiber is fine to coarse ● Multilayered structure and depth filtration pattern ensure good filtration efficiency ● Formed by thermal bond without using of any binders, adhesives and and lubricants ● 100% FDA approved polypropylene for compatibility with wide range of process fluids | ||
Working Principle of PP Melt Blown Cartridges | ||
● The drawing is the working principle of layers structure depth pp melt blown filter cartridge ● Layers filtration keep pp melt blown filter high flow rate, good filtration efficiency and long service life ● Large particles are filtered in outer layers of melt blown cartridges which are constructed by coarse fiber ● Small particles pass the outer layers, then filtered by inner layers wich made of fine fiber and high precision | ||
Installation of 40" 5 Micron PP Melt Blown Filter Cartridges
● Hongtek brand depth PP melt blown filters used for pre RO water filtration
● The central of PP filter elements are still no polluted, so that keep liquid clear after filtration
● After used PP filters compare with before used can apparent know the good efficiency filtration
● High quality and reasonable price melt blown cartridges increase of longer service life and save much cost
● No fiber drop out, high dirt holding, low pressure drop, high flow rate and high pressure resisting capability
Order Information| NPP | ID | OD | Micron Rating | Length | End Cap | Gasket/O-ring |
NPP Series Nominal PP Melt Blown Filter Cartridges | A = 28mm | C = 60mm | 1 = 1μm | 5 = 5" | D = DOE | S = Silicone |
| 5 = 5μm | 9.75 = 9.75" | |||||
| Q = 61mm | 10 = 10μm | 9.8 = 9.8" | T = 222/Flat(SOE) | E = EPDM | ||
| 20 = 20μm | 10 = 10" | |||||
| M = 63mm | 30 = 30μm | 20 = 20" | O = 222/Fin(SOE) | V = Viton | ||
| B = 30mm | 50 = 50μm | 30 = 30" | ||||
| 75 = 75μm | 40 = 40" | P = 226/Flat(SOE) | ||||
| F = 65mm | 50 = 50" | U = Buna | ||||
| 100 = 100μm | 60 = 60" | L = 226/Fin(SOE) | ||||
| 70 = 70" |
For Example:
NPP-A-M-5-40-D
NPP Series Nominal PP Melt Blown Filter Cartridges - 28mm - 63mm - 5μm - 40" - Double Open End (DOE)
Special specifications PP Melt Blown Filter Cartridges can be customized, such as special ID, OD, length and end caps etc.
