BCF series Backwashable PP Pleated Cartridges

FOB Price:Get Latest Price >
Min.Order:2 Set(s)
Production Capacity:100000 pieces per month
Payment Terms:T/T , Western Union , Small-amount payment , EXW

Favorite

Hongtek Filtration Co., Ltd.

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

Model:BCF series
Certification:CE
Net Weight:/
Dimension:2.75"(70mm)
Packaging Details:Carton
Brand Name:Hongtek
Trademark:Hongtek
Place of Origin:China
Warranty:4 years
Filter Media :Polypropylene
Length:60"(1524mm), 70"(1778mm)
Outside Diameter :2.75"(70mm)
Core :Polypropylene
Support/Drainage :Polypropylene
Gasket/O-ring :Silicone, EPDM, Viton, NBR
End Cap/Cage :Polypropylene
End Cap Type :DOE, 222/Flat, 222/Fin, 226/Flat, 226/Fin, 215/Flat, 215/Fin

Description

Backwashable PP Pleated Cartridges are mainly designed for power plant condensed water filtration. PP Filter media of backwashable pleated cartridges are available in absolute ratings ranging from 1 to over 100 microns to meet the removal requirements of each individual condensate system. Like all the condensate filter cartridges from Hongtek, a variety of end fittings can be selected to retrofit the elements in existing power plant condensate filter systems.

Feature

1. High surface area of superior pleated media, high dirt holding capacity

2. Wide range of chemical compatibility, long service life and economic cost

3. Less damage from iron and copper to the boiler and turbine of condensed system

4. Backwashable cartridges absolute micron rating, removal efficiency rated at 99.9%

5. Backwashable PP pleated cartridges designed for power plant condensed water filtration

6. Backwashable pleated cartridges can be backwashed to prolong life and easy to change out

Applications

1. Electronics

2. Boiler Water

3. Cooling Water

4. Pre RO Filtration

5. Sea Water Desalination

6. Condensed Water Filtration

7. Power Plant Water Treatment

Performance

Maximum Operating Temperature	80℃(176℉)
Max. Differential Pressure	4.0 bar at 20℃ (58 psi at 68℉)
	2.0 bar at 60℃ (29 psi at 140℉)
	1.4 bar at 80℃ (20 psi at 176℉)
Maximum reverse pressure	1.0 bar at 80℃ (14 psi at 176℉)
Recommended Change Out Differential Pressure	2.0 bar (29 psi)

Tech Support

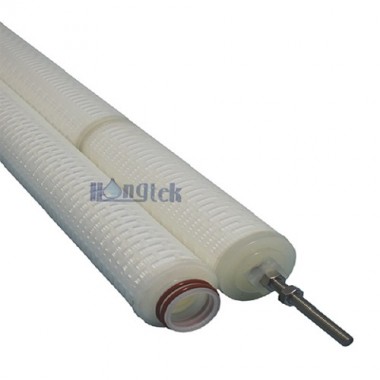

Display of Backwashable PP Pleated Cartridges

● Backwashable PP pleated cartridges are easy to maintenance and lower change out costs

● High surface area of superior pleated media, high dirt holding capacity, removal efficiency rated at 99.9%

● A variety of end fittings can be selected to retrofit the elements in existing power plant condensate filter systems

● 60 inchs & 70 inchs backwashable PP Pleated Cartridges are mainly designed for power plant condensed water filtration

Order Information

BCF	Length	Micron Rating	Gasket/O-ring	End Cap
BCF Series Backwashable PP Pleated Cartridges	60 = 60"	1 = 1μm	S = Silicone	DOE = Flat Gaskets Double Open End
		3 = 3μm	S = Silicone	2E = 2-222 O-ring with Flat End
		5 = 5μm	E = EPDM	6E = 2-226 O-ring with Flat End
		10 = 10μm	E = EPDM	2F = 2-222 O-ring with Fin
	70 = 70"	20 = 20μm	N = NBR	6F = 2-226 O-ring with Fin
		50 = 50μm	N = NBR	ES = Extended PP & S.S. Thread Adapter
		100 = 100μm	V = Viton	ES = Extended PP & S.S. Thread Adapter

For Example:

BCF-60-5-S-ES

BCF Series Backwashable PP Pleated Cartridges - 60" - 5μm - Silicone - Extended PP & S.S. Thread Adapter
