Description

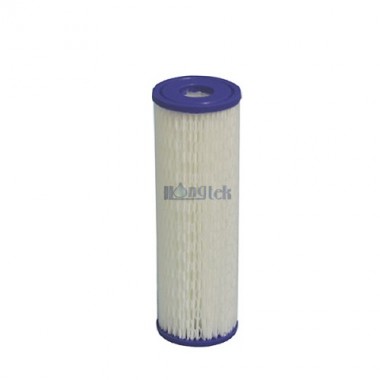

PET pleated cartridges are produced using 100% synthetic fibers, which are free of binders or adhesives, exhibit highly effective retention efficiency, also are washable and reusable commodiously. Polyester pleated filter cartridges also called water replacement filters, the pleated design increased surface area and extends service life, makes PET pleated cartridges to be one of the most economic options in water treatment.
Feature
1. Excellent compatibility with a wide range of chemicals and sanitizing agents
2. Fewer change outs and easy to washed and reuse, less maintenance are required
3. Available in a lot of lengths to meet different demands and equipment requirements
4. Plastisol (PVC) end caps/gaskets offer positive seal, large surface filtration area with high flow rate
5. Polypropylene outer netting strengthens resistance to pressure, prolong the service life of PET pleated cartridges
Applications
1. PCW
2. Pre RO/DI
3. Electronics
4. Drinking Water
5. Food & Beverage
6. Industrial Water & Plating
7. Chemicals & Organic Solvents
8. Chemicals & Organic Solvents
Performance
Operation Data for Polyester Pleated Filter Cartridges
| Maximum Operating Temperature | 75℃(167℉) |
| Max. Differential Pressure | 4.8 bar at 20℃ (70 psi at 68℉) |
| 3.4 bar at 50℃ (50 psi at 122℉) | |
| Maximum reverse pressure | 40 psid @ 70°F (2.8 bar @ 21°C) |
| Recommended Change Out Differential Pressure | 2.4 bar (35 psid) |
● Hongtek end cap is made of high quality Polyurethane, smooth surface is good for sealing, when others made of inferior glue and rough
● Hongtek PET pleated filters are tightening pleated with larger filtration area, when others are sparse pleated counts with less surface area
● The Pleated counts of Hongtek polyester pleated cartridges is equal or greater than 60, when low quality made less than 60 pleated counts
● Hongtek PET pleated cartridges have advanced outer netting to strengthen the whole construction, others don't make good neat outer netting
Order Information| PET | Length | Micron Rating | Outside |
PET Series Polyester Pleated Filter Cartridges | 5 = 5" | 1 = 1μm | W = With PP Netting |
| 9.75 = 9.75" | 5 = 5μm | ||
| 9.8 = 9.8" | 10 = 10μm | ||
| 10 = 10" | 20 = 20μm | ||
| 20 = 20" | 30 = 30μm | O = Without Netting | |
| 30 = 30" | 40 = 40μm | ||
| 40 =40" | 50 = 50μm | ||
| 100 = 100μm |
For Example:
PET-10-5-W
PET Series Polyester Pleated Filter Cartridges - 10" - 5μm - With PP Netting
