Description

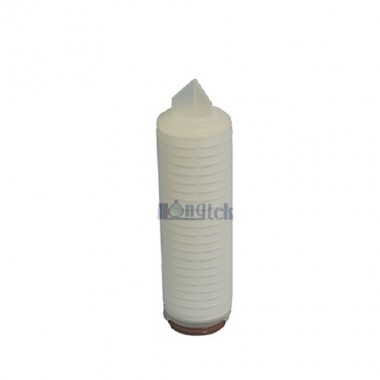

Absolute PP pleated filters are constructed with 100% advanced polypropylene materials and assembled by high technology thermal bonding equipment. Absolute PP pleated cartridges are offered in absolute rate Beta 5000(to 99.98%) retention efficiencies. Absolute pleated filter cartridges are wide chemical compatibility using 100% polypropylene materials comply with FDA, an ideal choice for efficient filtration of critical industries.
Feature
1. High surface area, resulting in low pressure and excellent dirt holding capacity
2. Wide chemical compatibility using 100% polypropylene material to meet FDA requirements
3. Assembled by high technology thermal bonding equipment, non-adhesive and 100% integrity tested
4. PP pleated filter cartridges are absolute removal ratings for consistent and reliable performance
5. Absolute PP pleated cartridges are offered in absolute rate Beta 5000(to 99.98%) retention efficiencies
Applications
1. Waste water
2. Process Water
3. Fine Chemicals
4. Semiconductor
5. Deionized Water
6. R.O Prefiltration
7. Plating Chemicals
Operation Data for Absolute PP Pleated Filter Cartridges
| Maximum Operating Temperature | 80℃(176℉) |
| Max. Differential Pressure | 4.8 bar at 20℃ (70 psi at 68℉) |
| 3.4 bar at 50℃ (50 psi at 122℉) | |
| 1.4 bar at 80℃ (20 psi at 176℉) | |
| Maximum reverse pressure | 40 psid @ 70°F (2.8 bar @ 21°C) |
| Recommended Change Out Differential Pressure | ΔP 35 psi |
| Filtered Hot Water | 80˚C for 30 min |
| Sterilization Temperature Time | 121˚C (250˚F) for 30 minutes, multiple cycles |
Electron Microscopic Photo of Absolute PP Membrane
| 3D Drawing for Absolute PP Pleated Filter Cartridges | ||||
● Ulti-layers pleated, low pressure drop, high capacity of impurities and long service life ● 100% integrity tested, ineer core and outside cage strengthen capacity of high flow pressure ● Thermal welding techniques ensure Absolute PP Pleated Filter Cartridges no side leakage ● Large surface area allow for high flow rate and higher dirt holding capacity than normal depth filters | ||||
Installation Example for Absolute PP Pleated Filter Cartridges | ||||
● Manufactured in continuous lengths up to 40 inches ● Easy to install help to save some manpower and time ● Many kinds of end caps fit for standard filter housings ● Wide range of chemical compatibility used in prefiltration fields ● Various gaskets/O-ring material compatible with a variety of fluids ● Special Absolute PP Pleated Filters can be made, such us S.S. inner core | ||||
| APC | Length | Micron Rating | End Cap | Gasket/O-ring | Adders |
APC Series Absolute PP Pleated Filter Cartridges | 5 = 5" | 0.1 = 0.1μm | A = Double Open End (DOE) | S = Silicone | T = Thicker PP Cage |
| 0.22 = 0.22μm | |||||
| 9.75 = 9.75" | 0.45 = 0.45μm | B = 222/Flat(SOE) | |||
| 0.65 = 0.65μm | E = EPDM | ||||
| 9.8 = 9.8" | 0.8 = 0.8μm | C = 222/Fin(SOE) | |||
| 1 = 1μm | I = Stainless Steel Insert End Cap | ||||
| 10 = 10" | 2 = 2μm | D = 226//Flat(SOE) | N = NBR | ||
| 3 = 3μm | |||||
| 20 = 20" | 5 = 5μm | F = 226/Fin(SOE) | |||
| 10 = 10μm | V = Viton | ||||
| 30 = 30" | 20 = 20μm | G = 215/Flat(SOE) | S = Stainless Steel Core | ||
| 30 = 30μm | |||||
| 40 =40" | 40 = 40μm | H = 215/Fin(SOE) | T = Teflon Encapsulated Viton | ||
| 50 = 50μm | |||||
| 60 = 60μm |
For Example:
APC-20-5-A-S
APC Series Absolute PP Pleated Filter Cartridges - 20" - 5μm - Double Open End (DOE) - Silicone Gasket
